BlueCAT™ SSI
3-Way Catalytic Converters for SSI Features
BlueCAT™ Small Spark Ignition (SSI) engine emission control system utilizes the same technology which has been verified and proven by California Air Resources Board (CARB) in 1000's of installations on Large Spark Ignition (LSI) engines- Ideal for LPG, CNG and gasoline engines used in small off-road engine applications (construction, utility, material handling industries)
- The BlueCAT™ SSI is compatible with an A/F controller (optional) to maximize the emission reduction in gaseous-fueled engines
- The BlueCAT™ SSI catalytic mufflers match or surpass the noise attenuation performance of the original muffler
- Customized designs are available upon request
BlueCAT™ Small Spark Ignition (SSI) engine emission control system utilizes the same technology which has been verified and proven by California Air Resources Board (CARB) in 1000's of installations on Large Spark Ignition (LSI) engines
* Emission performances may vary. Reported performance based upon surrogate test data. Engine operating with closed-loop fuel control at proper A/F ratio. System performance may vary based upon: performance and maintenance of the engine, fuel quality and type, duty cycle and exhaust temperature. Reference performance based on triplicate ISO 8178 D2 test cycles with engine operating in closed-loop configuration.
BlueCAT™ SSI - Technology
Nett Technologies’ BlueCAT™ Small Spark Ignition (SSI) engine emission control system utilizes the same technology which has been verified and proven by the California Air Resources Board (CARB) in 1000's of installations on Large Spark Ignition (LSI) engines. It has been customized to suit small engine applications. The BlueCAT™ SSI emission control system is designed to operate on gasoline and gaseous (LPG & CNG) fueled SSI engines to provide high-performance reductions in all major exhaust gas emissions. Carbon Monoxide (CO) is reduced by up to 98%, Oxides of Nitrogen (NOx), and Hydrocarbons (HC) by up to 95%. Great at reducing harmful emissions, the BlueCAT™ SSI system is ideal for use in household and commercial applications, including generators, lawn and garden equipment, utility vehicles and a variety of other construction, farm, and industrial equipment.
The BlueCAT™ SSI is compatible with an A/F controller (optional) to maximize the emission reduction in gaseous (LPG & CNG) fueled engines. Using field tested CARB verified technology for LSI, the BlueCAT™ SSI engine 3-way catalyst is the perfect emission control solution to your small engine.
BlueCAT™ SSI - Performance
In Nett Technologies' BlueCAT™ SSI 3-way catalyst, reactions between Carbon Monoxide (CO), Hydrocarbons (HC), and Oxides of Nitrogen (NOx) result in the simultaneous removal of all three major exhaust pollutants. One of the fundamental chemical reactions occurring in the catalyst can be written as follows:
CO + NO = CO2 + 1/2 N2
Concentrations of pollutants in the exhaust gas depend on the fuel mixture composition. At lean fuel mixtures the exhaust gases contain little Carbon Monoxide (CO) or Hydrocarbons (HC) but high concentrations of Oxides of Nitrogen (NOx). Rich mixtures produce high concentrations of CO and HC with little NOx. In order to achieve high simultaneous conversions of CO and NOx, their concentrations in the exhaust must be in stoichiometric proportion, as illustrated by the above equation. If the air-to-fuel mixture is not stoichiometric, conversion of either NOx or CO will deteriorate, as shown in the diagram below.

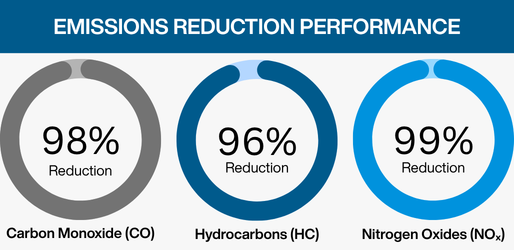

CO emissions are typically reduced by over 98%. HC are reduced by 95%. The characteristic smell of propane exhaust is virtually eliminated. Over 95% reduction of NOx is achieved when Nett's BlueCAT™100 air/fuel ratio controller is used.
BlueCAT™ SSI - Design Options
Nett Technologies’ BlueCAT™ SSI engine emission control system is a direct-fit replacement for OEM-designed muffler simplifying installation and saving time. The emission control catalyst is built into the BlueCAT™ SSI muffler to match the same OEM envelope for size, sound attenuation, back pressure characteristics with the addition of superior emissions performance. Direct-fit designs are available for most Honda, Kohler, Briggs & Stratton, Kawasaki, and Subaru engines with customized designs available upon request.
Nett Technologies’ BlueCAT™ SSI engine emission control systems are designed as direct-fit replacements for OEM mufflers to the following engines:
Honda
|
|
|
Kawasaki
|
|
|
Kohler
|
|
|
Briggs & Stratton
|
|
Subaru
|
Other designs and engine models are available upon request.
Please note some designs require a sample muffler and available only in a cut & install design. Contact our sales team for more information.
BlueCAT™ SSI - Technology
Nett Technologies’ BlueCAT™ Small Spark Ignition (SSI) engine emission control system utilizes the same technology which has been verified and proven by the California Air Resources Board (CARB) in 1000's of installations on Large Spark Ignition (LSI) engines. It has been customized to suit small engine applications. The BlueCAT™ SSI emission control system is designed to operate on gasoline and gaseous (LPG & CNG) fueled SSI engines to provide high-performance reductions in all major exhaust gas emissions. Carbon Monoxide (CO) is reduced by up to 98%, Oxides of Nitrogen (NOx), and Hydrocarbons (HC) by up to 95%. Great at reducing harmful emissions, the BlueCAT™ SSI system is ideal for use in household and commercial applications, including generators, lawn and garden equipment, utility vehicles and a variety of other construction, farm, and industrial equipment.
The BlueCAT™ SSI is compatible with an A/F controller (optional) to maximize the emission reduction in gaseous (LPG & CNG) fueled engines. Using field tested CARB verified technology for LSI, the BlueCAT™ SSI engine 3-way catalyst is the perfect emission control solution to your small engine.
BlueCAT™ SSI - Performance
In Nett Technologies' BlueCAT™ SSI 3-way catalyst, reactions between Carbon Monoxide (CO), Hydrocarbons (HC), and Oxides of Nitrogen (NOx) result in the simultaneous removal of all three major exhaust pollutants. One of the fundamental chemical reactions occurring in the catalyst can be written as follows:
CO + NO = CO2 + 1/2 N2
Concentrations of pollutants in the exhaust gas depend on the fuel mixture composition. At lean fuel mixtures the exhaust gases contain little Carbon Monoxide (CO) or Hydrocarbons (HC) but high concentrations of Oxides of Nitrogen (NOx). Rich mixtures produce high concentrations of CO and HC with little NOx. In order to achieve high simultaneous conversions of CO and NOx, their concentrations in the exhaust must be in stoichiometric proportion, as illustrated by the above equation. If the air-to-fuel mixture is not stoichiometric, conversion of either NOx or CO will deteriorate, as shown in the diagram below.
CO emissions are typically reduced by over 98%. HC are reduced by 95%. The characteristic smell of propane exhaust is virtually eliminated. Over 95% reduction of NOx is achieved when Nett's BlueCAT™100 air/fuel ratio controller is used.
BlueCAT™ SSI - Design Options
Nett Technologies’ BlueCAT™ SSI engine emission control system is a direct-fit replacement for OEM-designed muffler simplifying installation and saving time. The emission control catalyst is built into the BlueCAT™ SSI muffler to match the same OEM envelope for size, sound attenuation, back pressure characteristics with the addition of superior emissions performance. Direct-fit designs are available for most Honda, Kohler, Briggs & Stratton, Kawasaki, and Subaru engines with customized designs available upon request.
Nett Technologies’ BlueCAT™ SSI engine emission control systems are designed as direct-fit replacements for OEM mufflers to the following engines:
Honda
|
|
|
Kawasaki
|
|
|
Kohler
|
|
|
Briggs & Stratton
|
|
Subaru
|
Other designs and engine models are available upon request.
Please note some designs require a sample muffler and available only in a cut & install design. Contact our sales team for more information.
